em01f

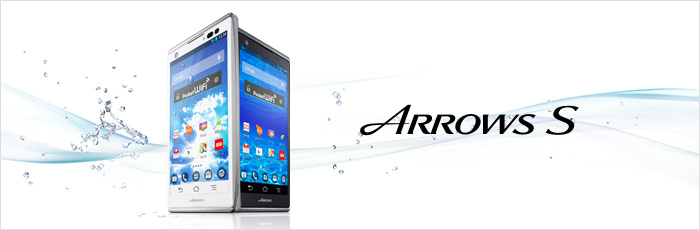

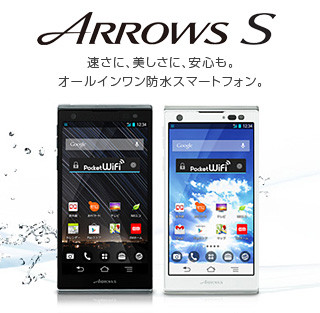

ARROWS S

EM01F/ Fujitsu Mobile Communications

Speed, beauty, and peace of mind.
All-in-one waterproof smartphone.

Main Specifications

Basic specifications

color White/Black
size
Width (W) x Height (H) x Thickness (D) (excluding protruding parts)		 Approx. 65 x 129 x 10.8 mm
Weight Approx. 151g (including battery pack)
CPU APQ8064 1.5GHz (quad core)
OS (platform) Android™ 4.1
Talk Time＊1 Approx. 640 minutes
Continuous standby time＊1 AXGP: Approx. 300 hours
3G: Approx. 460 hours
Battery capacity 2,420mAh
Data folder capacity Approximately 25GB
Internal memory (max capacity)＊2 ROM: 32GB / RAM: 2GB
External memory
(Maximum supported card capacity)		 microSD™ (2GB)
microSDHC™ (32GB)
microSDXC™ (64GB)
Communication speed＊3 Download speed up to 76Mbps
Upload speed up to 10Mbps
Communication method AXGP/3G

display

Display Type TFT
Display size Approximately 4.7 inches
Display resolution 1280×720 (HD)

camera

Effective pixels Main: Approx. 13.1 megapixels
Sub: Approx. 1.25 million pixels
Autofocus Main: ●
Sub:-
Still image recording size (maximum) 4,128×3,096
Video recording size (maximum) 1,920×1,080

Pocket WiFi® function (tethering)

Continuous communication time＊1 AXGP: Approx. 420 minutes
3G: Approx. 480 minutes
Maximum number of connections Up to 8 units

Email

Y!mobile email (@yahoo.ne.jp) ●
MMS＊4 ● (@ymobile.ne.jp)
SMS (Short Message Service) ●

Others

Mobile Wallet® ●
Waterproof and dustproof＊5＊6 Waterproof: IPX5/IPX8
Dust resistance: IP5X
One Seg ●
Emergency Alert Email ●
International Roaming ● (3G/GSM)
GPS ●
Bluetooth® communication ●（4.0）
Infrared communication ●
Wireless LAN (child unit) ●(IEEE802.11a/b/g/n)
Supported OS when connecting to a PC modem Windows® XP SP3 or later
(32-bit version)
Windows Vista®
(32-bit version/64-bit version)
Windows® 7
(32-bit version/64-bit version)
Windows® 8
(32-bit version/64-bit version)
accessories Battery pack, AC adapter, desktop holder, quick start, requests and precautions, warranty card for the device, warranty card for the AC adapter, microSD card (2GB, sample)
  • ＊1This may vary depending on radio wave conditions and usage environment.
  • ＊2We do not guarantee that all commercially available memory cards will work.
  • ＊3The communication speeds listed are the maximum values according to technical standards based on the best-effort method, and are not guaranteed as effective speeds. Communication speeds may vary depending on the communication environment and congestion. Maximum communication speeds also vary depending on the area of use.
  • ＊4When changing your device, you may not be able to continue using the email address you used on your previous device.
  • ＊5Waterproof performance equivalent to IPX5/IPX8
    IPX5: The phone will maintain its functionality even when subjected to a water jet from a nozzle with an inner diameter of 6.3 mm spraying water at a rate of 12.5 liters per minute from a distance of approximately 3 m for more than 3 minutes.
    IPX8: IPX8 means that the mobile phone will function as a phone when submerged in tap water at room temperature to a depth of 1.5m for 30 minutes and then removed.
  • ＊6Dustproof performance equivalent to IP5X
    IP5X means that the phone can be placed in an environment with dust particles with a diameter of 75 μm or less for eight hours, and then taken out, still functioning as a phone and remaining safe.

About Specific Absorption Rate (SAR)

This model (EM01F) mobile phone complies with the government's technical standards regarding the absorption of radio waves by the human body.

Various downloads

Requests and Cautions Download
EM01F Requests and Cautions (PDF: approx. 794KB) download
Quick Start Download
EM01F Quick Start (PDF: approx. 16.2MB) download
Download the instruction manual
EM01F Instruction Manual (PDF: approx. 14.5MB) download
Please read this first(PDF: approx. 335KB) download
Usage (PDF: approx. 1.07MB) download
Basic knowledge/Basic operations (PDF: approx. 2.98MB) download
How to view the screen (PDF: approx. 946KB) download
Telephone/Telephone directory (PDF: approx. 1.24MB) download
Email/Browser (PDF: approx. 3.11MB) download
Camera (PDF: approx. 618MB) download
Music/Still images/Videos(PDF: approx. 676KB) download
One Seg (PDF: approx. 943KB) download
Useful Features (PDF: approx. 1.62MB) download
Wi-Fi/Connection (PDF: approx. 1.29MB) download
Use overseas (PDF: approx. 367KB) download
Device settings (PDF: approx. 1.29MB) download
When in trouble (PDF: approx. 181KB) download

ARROWS S software update

About software updates

Update history

  • - Improved the issue where the flash would not fire in dark places when shooting with the camera flash setting set to "AUTO".
  • - Improved operational stability
  • ● For software update procedures, please check the "Software Update Method" below and then carry out the procedure.
  • ● Software updates may not work properly depending on communication conditions or server congestion. In that case, please try again later. Please also check the following precautions.

How to update software

For a comfortable use

When using this service, please be sure to keep your device software up to date.
Please check the following steps to update your software.

1

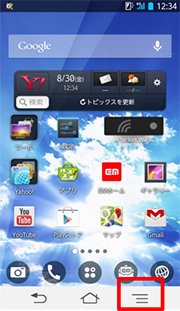

Tap the Menu icon on the Home screen.

2

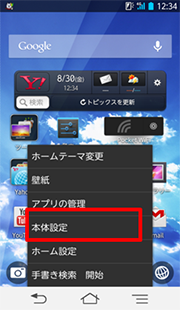

Tap Device settings.

3

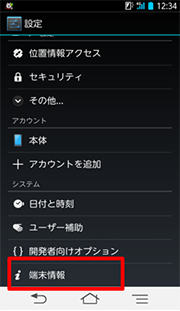

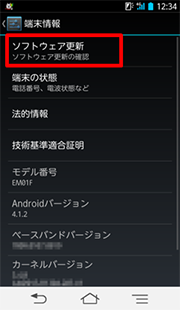

Tap About phone.

4
Tap Software Update.

5

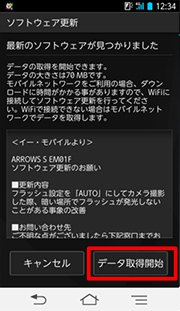

Tap [Start downloading data]. *The screen shown is when updating via mobile network.

6
The software download will begin.

7

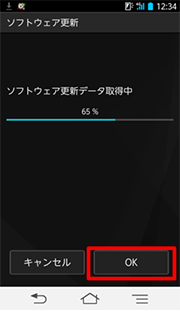

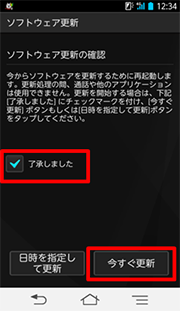

Tap Got it, then tap Update Now.

8

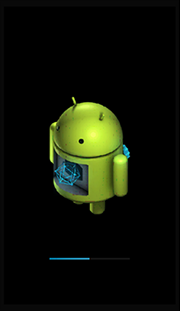

The software will be updated and then rebooted.

9

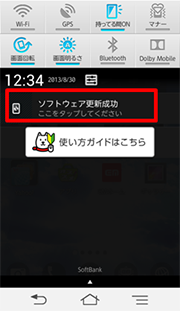

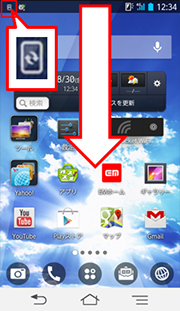

After rebooting, make sure that is displayed, then drag the status bar down.

​
Tap Software update successful.

11

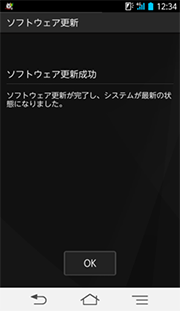

Tap OK. Software updated successfully

Software version

The software version after the software update is V13R15D.

Software Update Notice

  • ● If the software is already up to date, after clicking "Execute" in step 4, it will check whether the software is the latest and will display the message "Your system is up to date. There is no new update data."
  • ● There are no communication charges for software updates (downloads).
  • ● We recommend that you perform software updates (downloads) in an area with good signal conditions (four antennas) and without moving.
  • ● Make sure there is sufficient battery power remaining in the unit.
  • ● Do not remove the USIM card (EM chip) or turn off the power while updating the software, as this may result in the update failing.
  • ● The software update (rewrite) takes approximately 5 minutes.
  • ● Software updates (downloads) cannot be performed in the following cases.
    • When you are out of range
    • ○ Software update (rewrite) in progress
  • ● Communication and other functions cannot be used while the software is being updated (rewritten).
  • ● When updating the software, your EM01F-specific information (such as model and serial number) will be automatically sent to the software update server. We will not use the sent information for any purpose other than software updates.
  • ● If the device does not restart after the software update, press and hold the power button and restart the device from the menu.
  • ● If the software update fails, you may not be able to operate the device at all. If this happens, we apologize for the inconvenience, but please contact us at the address listed here.
  • ● Any data you set before the software update will remain intact, but it is possible that data may be lost depending on the condition of the device (such as a malfunction). Even data that is carried over may be lost depending on the condition of the device (such as a malfunction). Please note that we are not responsible for any data loss.

Official Charger

It is equipped with overheating protection, overvoltage protection, and overcurrent protection functions.

microUSB fast charging AC adapter*1 Y1-AC12-HDQC
microUSB charging AC adapter 1.0A Y1-AC13-HDMU

*1 Normal charging is supported. (Quick charging is not supported.)

×
